OM4
Fiber family
OM4 Multimode Fiber Cables
Magenta/erika-violet OM4 with 4700 MHz·km bandwidth. Where OM3 stops, OM4 keeps going — up to 150 m at 40G/100G.
- Wavelength
- 850 nm / 1300 nm
- Distance
- ≤ 550 m @ 10G · ≤ 150 m @ 40G/100G
- Jacket color
- Magenta / erika-violet
When to use OM4
- High-density data centers with longer runs
- 40G-SR4, 100G-SR4 to 150 m — 50% farther than OM3
- 10G-SR to 550 m across large campus buildings
- Retrofit environments where cable runs are already long
Products in OM4
4 SKUs available
FO-P-OM4-LCLC-DX

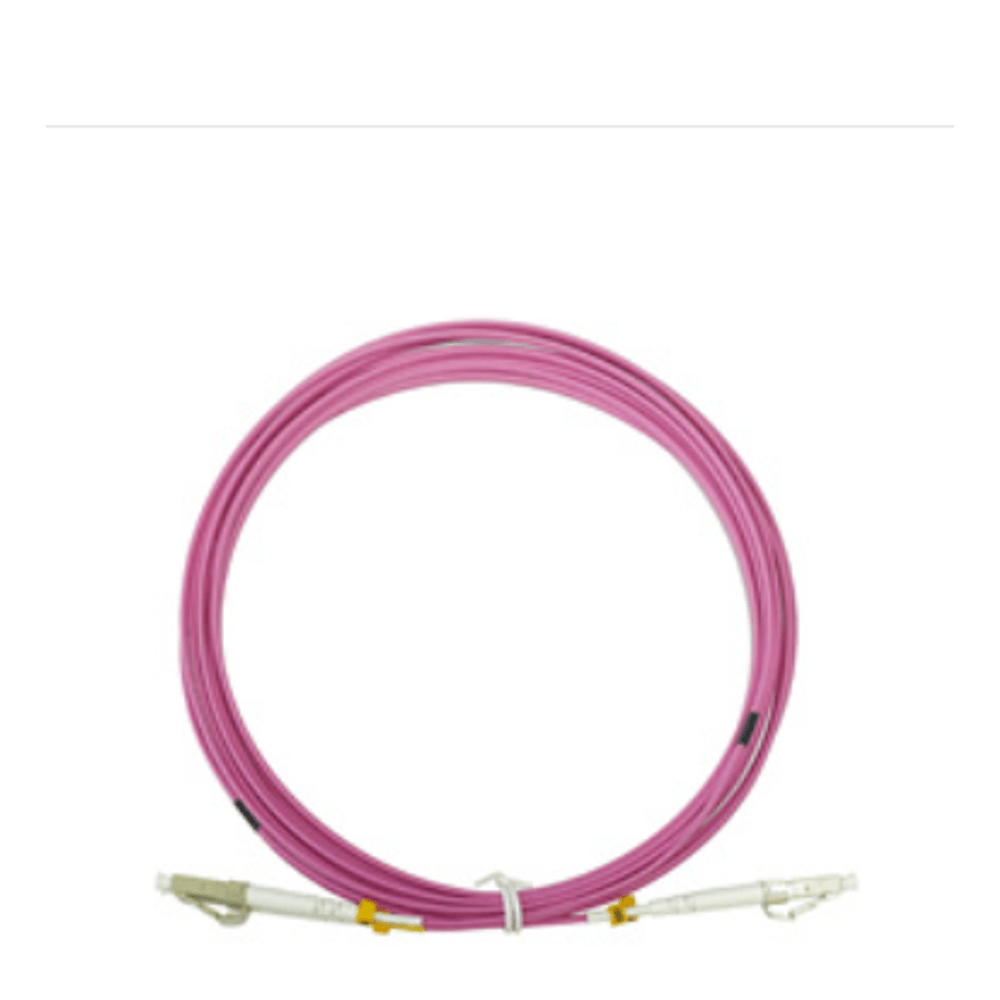

OM4 LC-LC UPC Duplex LSZH Patch Cord
Bend-insensitive OM4 duplex for 40G/100G short-reach data centers. LC-LC UPC, 2.0 mm LSZH jacket, magenta.
10G-SR40G-SR4100G-SR4
FO-P-OM4-LCST-SX

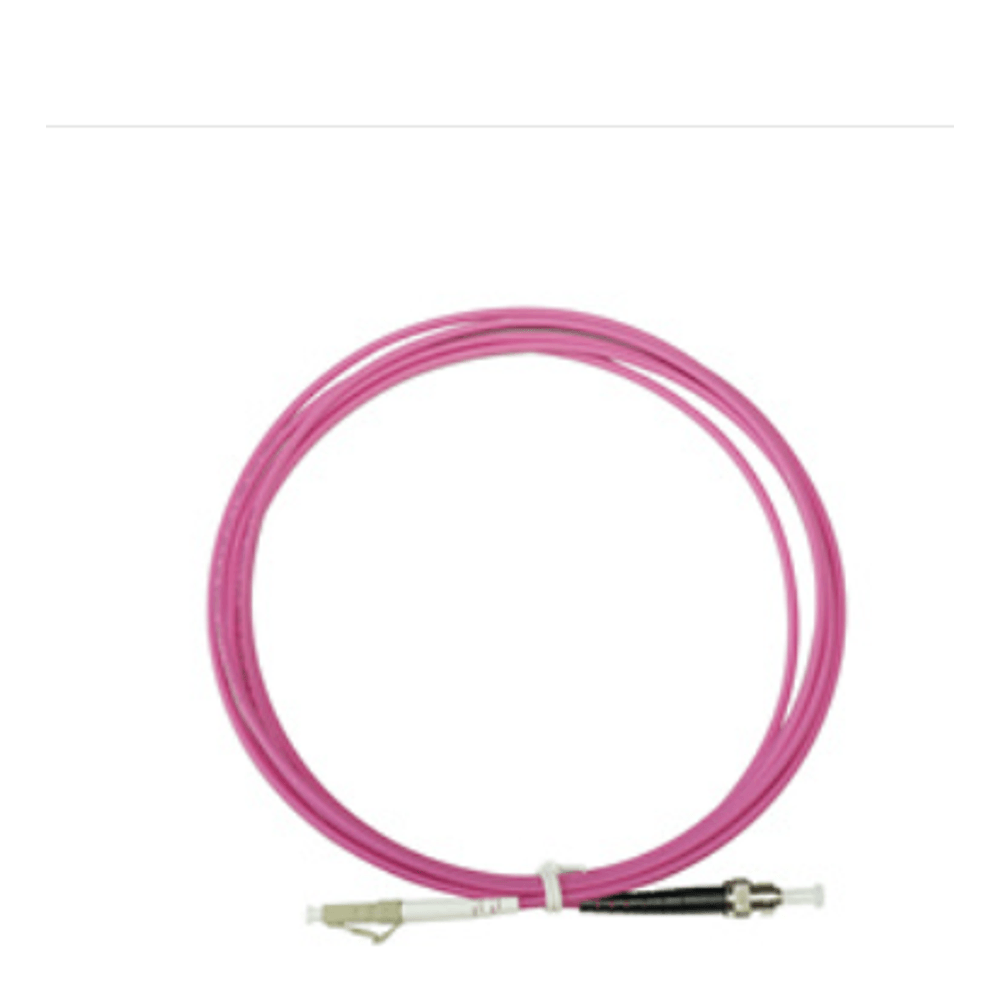

OM4 LC-ST UPC Simplex LSZH Patch Cord
Single-fiber OM4 hybrid cord — LC-to-ST bridges newer switch ports to legacy ST panels without splicing.
10G-SR10G BiDilegacy ST-panel bridging
FO-P-OM4-SCSC-DX

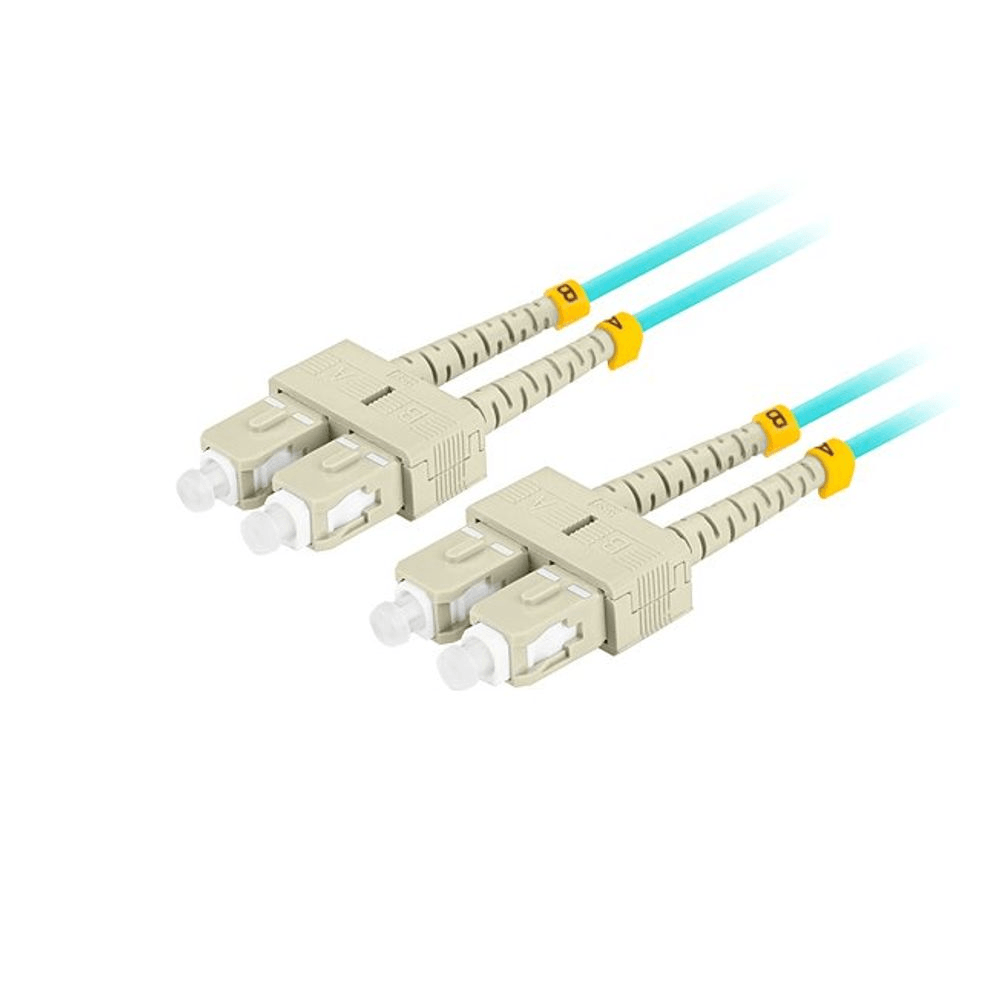

OM4 SC-SC UPC Duplex LSZH Patch Cord
Multimode OM4 duplex with SC connectors on both ends — for legacy SC-panel data centers running 40G/100G-SR4 with extended reach.
10G-SR40G-SR4100G-SR4
FO-P-OM4-LCSC-DX

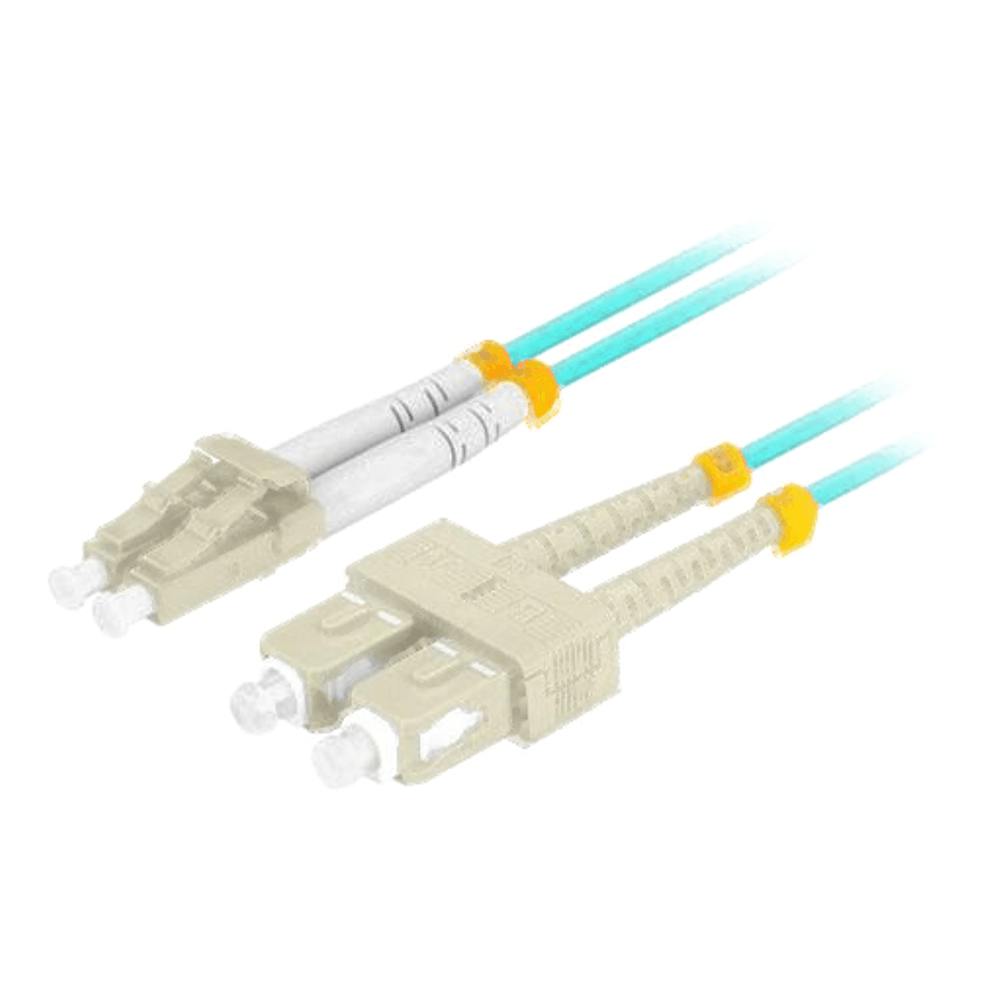

OM4 LC-SC UPC Duplex LSZH Patch Cord
LC-to-SC hybrid duplex on OM4 — retrofit from legacy SC panels to modern LC switch ports with 40G/100G-SR4 headroom.
10G-SR40G-SR4 (short)SC-to-LC retrofit
